ASTM A367-22 PDF

1.1''These test methods for chill testing apply to gray irons that are to be free of chill in the casting and to chilled irons that are to have a specific depth of chill in the casting. Two test methods for determining the chilling tendencies of cast iron are covered as follows. For many applications, either test method will be satisfactory if test pieces of the proper dimensions are selected.

1.1.1''Test Method A, Wedge Test'''This test is adapted for the higher-strength gray irons. The accelerated cooling rate to induce the formation of a chill is brought about through the design of the test specimen. This test method is simpler than Test Method B since maintenance of chill blocks or plates is not necessary.

1.1.2''Test Method B, Chill Test'''This test is adapted for the softer grades of gray iron and should be used if the casting is to have a specified depth of chill. The chill in this type of test is induced by casting one edge of the test specimen against a metal or graphite chilled plate or block.

1.2''The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered to be part of the standard.

1.2.1''The metric equivalency charts in Figs. 1 and 2 are provided for information only.

in.

mm

in.

mm

in.

mm

1/32''

0.8

³/8''''''''

'''9.5

1'''''''''

25.4

1/16''

1.6

7/16''

12.1

11/4''

31.8

³/32''

2.4

1/2''''''''

12.7

11/2''

38.1

1/8''

3.2

9/16''

14.3

1³/4''

44.4

³/16''

4.8

11/16''

17.5

2''''''

50.8

1/4''

6.4

³/4'''''

19.0

21/2''

63.5

5/16''

7.9

13/16''

20.6

''

''

1.3''This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.

1.4''This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  Product Details Published: 01/01/2022 Number of Pages: 4 File Size: 1 file , 97 KB Redline File Size: 2 files , 200 KB Note: This product is unavailable in Russia, Ukraine, Belarus   Document History

1. ASTM A367-22

   👀 currently
   viewing

   January 2022
   Standard Test Methods for Chill Testing of Cast Iron

   •  Most Recent
2. ASTM A367-11(2017)

   October 2017
   Standard Test Methods of Chill Testing of Cast Iron

   • Historical Version
3. ASTM A367-11

   July 2011
   Standard Test Methods of Chill Testing of Cast Iron

   • Historical Version
4. ASTM A367-60(2005)

   June 2005
   Standard Test Methods of Chill Testing of Cast Iron

   • Historical Version

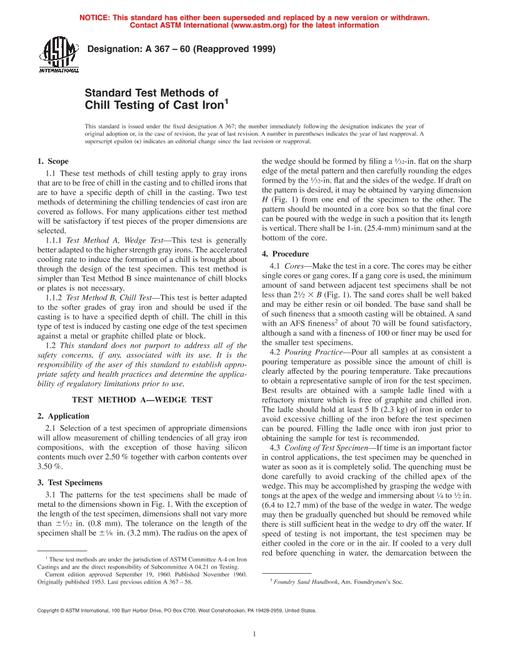

5. ASTM A367-60(1999)
