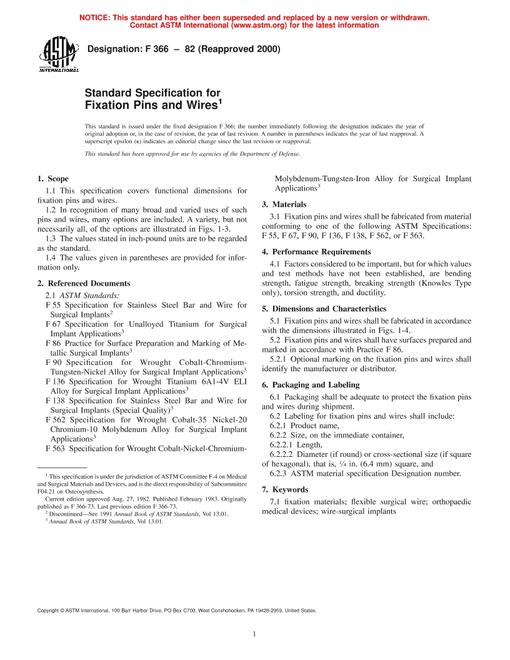

1.1 This specification covers functional dimensions for fixation pins and wires. 1.2 In recognition of many broad and varied uses of such pins and wires, many options are included. A variety, but not necessarily all, of the options are illustrated in Figs. 1-3.
FIG. 1 Fixation Pins and Wires Note 1: Pins and wires may be smooth shank or threaded. Note 2: Point angle and helix angle, where applicable, is as specified by the manufacturer. Note 3: On square or triangular shanks, flats are equal and corners are on the same circumference as the pin diameter. Shank diameters on pins larger than 3.2 mm may be reduced. Note 4: Optional designs, both ends pointed or point with suture hole.
FIG. 2 Fixation Pin-Knowles Type Note 1: Shall be made of one piece of material; that is, not an assembly of two or more pieces. Note 2: Thread major diameter may be the same or larger than the shaft diameter. Note 3: Thread length shall be optional to suit the intended medical application. Note 4: Optional marking in this location.
FIG. 3 Fixation Pin-Hagie Type Note 1: Thread major diameter may be the same or larger than the shaft diameter. Note 2: Thread length shall be optional to suit the intended medical application. 1.3 The values stated in SI units are to be regarded as standard. No other units of measurement are included in this standard. 1.4
This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use. 1.5
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee. | File Size : | 1
