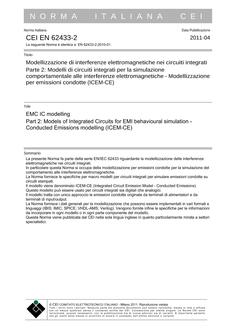

CEI EN 62433-2 PDF

This part of IEC 62433 specifies macro-models for an Integrated Circuit (IC) to simulate conducted electromagnetic emissions on a printed circuit board. The model is commonly called Integrated Circuit Emission Model – Conducted Emission (ICEM-CE).

The ICEM-CE macro-model can also be used for modelling an IC-die, a functional block and an Intellectual Property (IP) block.

The ICEM-CE macro-model can be used to model both digital and analogue ICs.

Basically, conducted emissions have two origins:

• conducted emissions through power supply terminals and ground reference structures;

• conducted emissions through input/output (I/O) terminals.

The ICEM-CE macro-model addresses those two types of origins in a single approach.

This standard defines structures and components of the macro-model for EMI simulation taking into account the IC’s internal activities.

This part of IEC 62433 has two main parts:

• the first is the electrical description of ICEM-CE macro-model elements along with the specific requirements for information.

• the second part proposes a universal data exchange format called CEML based on XML. This format allows encoding the ICEM-CE in a more useable and generic form for simulating the conducted emissions.
