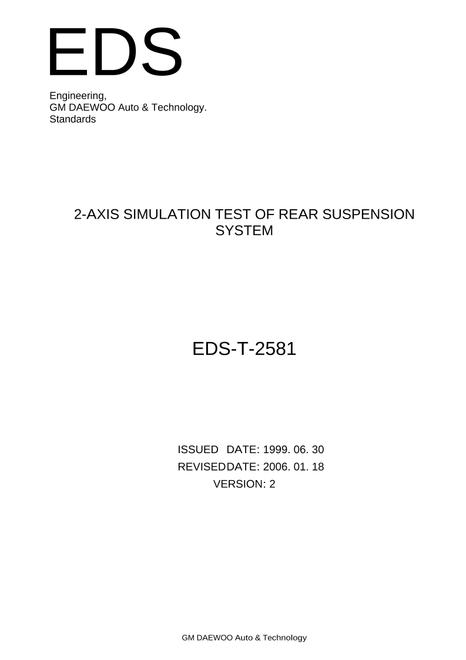

GMKOREA EDS-T-2581 PDF

Introduction

Note: Nothing in this standard supersedes applicable laws and regulations.

Note: In the event of conflict between the Korean and English language, the Korean language shall take precedence.

Purpose. This standard aims at specifying the procedures of verifying durability of the components of the rear suspension assembly of V200 car excluding the rear knuckle and damper system through the 2-axis simulation (longitudinallateral test) of the longitudinal load input which passes through the tire centerline and the lateral load input at the tire ground contact area among other loads applied from the axle in driving and through the 2-axis simulation (vertical test) of the vertical load input to each right and left wheel.

Applicability. This standard applies only to the rear suspension assembly of the V200 cars. Components subject to verification of durability through this test are the rear cross member, trailing arm, upper arm, lower arm, track link, stabilizer bar and related parts.
