Name:

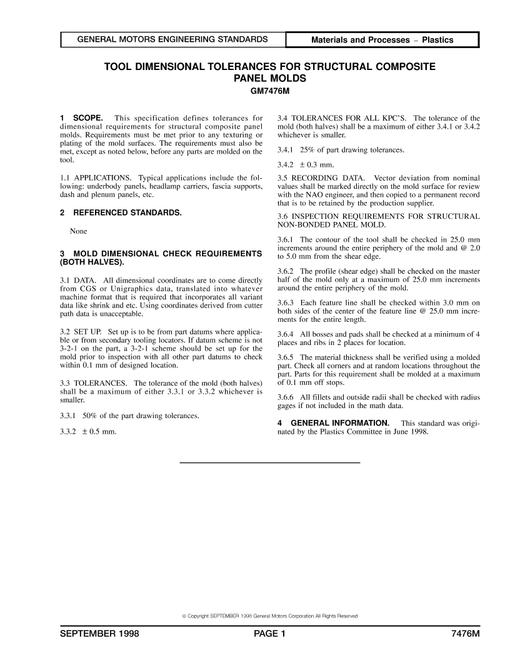

GMNA GM7476M PDF
Published Date:
09/01/2012
Status:
[ Not for New Design ]
Publisher:
General Motors North America
This specification defines tolerances for dimensional requirements for structural composite panel molds. Requirements must be met prior to any texturing or plating of the mold surfaces. The requirements must also be met, except as noted below, before any parts are molded on the tool.
APPLICATIONS. Typical applications include the following: underbody panels, headlamp carriers, fascia supports, dash and plenum panels, etc.
| Edition : | 2 |
| File Size : | 1 file , 400 KB |
| Number of Pages : | 1 |
| Published : | 09/01/2012 |
