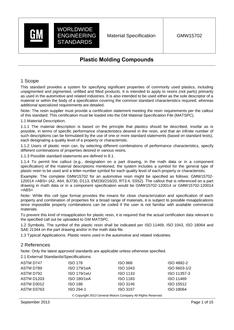

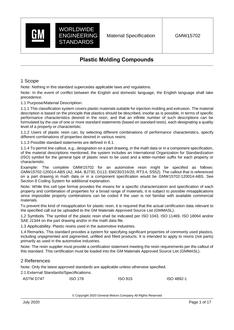

GMW GMW15702 PDF

Note: Nothing in this standard supercedes applicable laws and regulations.

Note: In the event of conflict between the English and domestic language, the English language shall take precedence.

Purpose/Material Description.

This classification system covers plastic materials suitable for injection molding and extrusion. The material description is based on the principle that plastics should be described, insofar as is possible, in terms of specific performance characteristics desired in the resin, and that an infinite number of such descriptions can be formulated by the use of one or more standard statements (based on standard tests), each designating a quality level of a property or characteristic.

Users of plastic resin can, by selecting different combinations of performance characteristics, specify different combinations of properties desired in various resins.

Possible standard statements are defined in 8.1.

To permit line callout, e.g., designation on a part drawing, in the math data or in a component specification, of the material descriptions mentioned, the system includes an International Organization for Standardization (ISO) symbol for the general type of plastic resin to be used and a letter-number suffix for each property or characteristic.

Example: The complete GMW15702 for an automotive resin might be specified as follows: GMW15702-120014-ABS (A2, A64, BJ730, DD113, EM230/216/20, RT3.4, SS52). The callout that is referenced on a part drawing in math data or in a component specification would be GMW15702-120014-ABS. See Section 8 Coding System for additional explanation.

Note: While this cell type format provides the means for a specific characterization and specification of each property and combination of properties for a broad range of materials, it is subject to possible misapplications since impossible property combinations can be coded if the user is not familiar with available commercial materials.

To prevent this kind of misapplication for plastic resin, it is required that the actual certification data relevant to the specified call out be uploaded to the GM Materials Approved Source List (GMMASL).

Symbols.

The symbol of the plastic resin shall be indicated per ISO 1043, ISO 11469, ISO 18064 and/or SAE J1344 on the part drawing and/or in the math data file.

Applicability.

Plastic resins used in the automotive industries. Each GMW15702 callout is unique and applies to one (1), and only one (1), resin. The resin can have multiple manufacturing locations.

Remarks.

This standard provides a system for specifying significant properties of commonly used plastics, including unpigmented and pigmented, unfilled, and filled/reinforced products. It is intended to apply to resins (not parts) primarily as used in the automotive industries.

Note: The resin supplier must provide a certification statement meeting the resin requirements per the callout of this standard. This certification must be loaded into the GM Materials Approved Source List (GMMASL).
