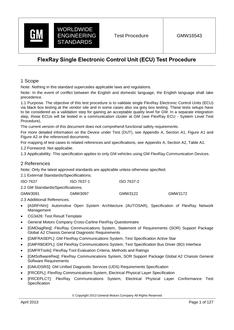

GMW GMW16543 PDF

Introduction

Note: Nothing in this standard supercedes applicable laws and regulations.

Note: In the event of conflict between the English and domestic language, the English language shall take precedence.

Purpose. The objective of this test procedure is to validate single FlexRay Electronic Control Units (ECU) via black box testing at the vendor site and in some cases also via grey box testing. These tests setups have to be considered as a validation step for gaining an acceptable quality level for GM. In a separate integration step, those ECUs will be tested in a communication cluster at GM. See FlexRay ECU: System Level Test Procedure.

The current version of this document does not comprehend functional safety requirements.

For more detailed information on the Device under Test (DUT), see Figure A1 and Figure A2 in Section A1 of Appendix A or the referenced documents.

For mapping of test cases to related references and specifications, see Table A1 in Section A2 of Appendix A. 1.2

Applicability. This specification applies to only GM vehicles using GM FlexRay Communication Devices.
