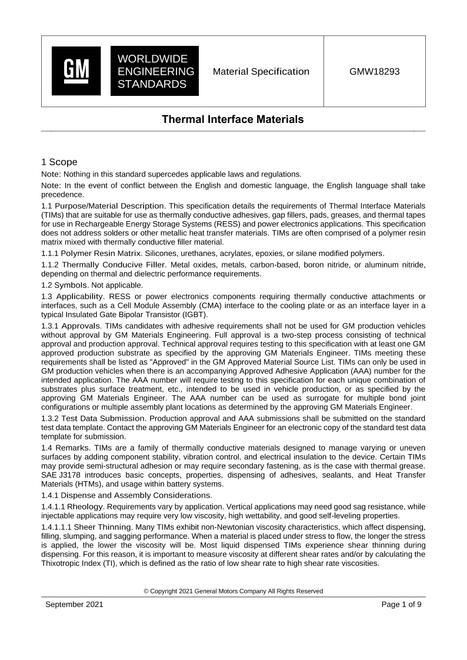

GMW GMW18293 PDF

Note: Nothing in this standard supercedes applicable laws and regulations.

Note: In the event of conflict between the English and domestic language, the English language shall take precedence.

Purpose/Material Description.

This specification details the requirements of Thermal Interface Materials (TIM) that are suitable for use as thermally conductive adhesives, gap fillers, pads, greases, and thermal tapes for use in high voltage battery pack and power electronics applications. This specification does not address solders or other metallic heat transfer materials. TIMs are often comprised of a polymer resin matrix mixed with thermally conductive filler material.

Polymer Resin Matrix.

Silicones, urethanes, acrylates, epoxies, or silane modified polymers.

Thermally Conductive Filler.

Metal oxides, metals, carbon-based, boron nitride, or aluminum nitride, depending on thermal and dielectric performance requirements.

Symbols.

Not applicable.

Applicability.

High voltage battery packs or power electronics components requiring thermally conductive attachments or interfaces, such as a Cell Module Assembly (CMA) interface to the cooling plate or as an interface layer in a typical Insulated Gate Bipolar Transistor (IGBT).

Approvals.

TIMs candidates with adhesive requirements shall not be used for GM production vehicles without approval by GM Materials Engineering. Full approval is a two (2)-step process consisting of technical approval and production approval. Technical approval requires testing to this specification with at least one (1) GM approved production substrate as specified by the approving GM Materials Engineer. TIMs meeting these requirements shall be listed as "Approved" in the GM Material Approved Source List (GMMASL).

Test Data Submission.

Test data for approval to GM approved source list shall be submitted in GM Material Property Database (GMMPD) section of the GMW Thermal Interface Material Certification Package provided by GM Design Release Engineer (DRE) or Materials Engineer. Consideration for production approval shall require completion of the full standard test data template. Contact the approving GM Materials Engineer for an electronic copy of the standard test data template for submission.

Remarks.

TIMs are a family of thermally conductive materials designed to manage varying or uneven surfaces by adding component stability, vibration control, and electrical insulation to the device. Certain TIMs may provide semi-structural adhesion or may require secondary fastening, as is the case with thermal grease. SAE J3178 introduces basic concepts, properties, dispensing of adhesives, sealants, and Heat Transfer Materials (HTMs), and usage within battery systems.

Dispense and Assembly Considerations.

Rheology.

Requirements vary by application. Vertical applications may need good sag resistance, while injectable applications may require very low viscosity, high wettability, and good self-leveling properties.

Sheer Thinning.

Many TIMs exhibit non-Newtonian viscosity characteristics, which affect dispensing, filling, slumping, and sagging performance. When a material is placed under stress to flow, the longer the stress is applied, the lower the viscosity will be. Most liquid dispensed TIMs experience shear thinning during dispensing. For this reason, it is important to measure viscosity at different shear rates and/or by calculating the Thixotropic Index (TI), which is defined as the ratio of low shear rate to high shear rate viscosities.

Flow Rate.

A good indicator of liquid TIMs dispensability when viscosity data is not readily available. Flow rate testing assumes that temperature and shear stress, i.e., dispense pressure, remain constant during the test.

Heat.

Heating of TIMs during dispense may be used to temporarily reduce the viscosity, though working time is typically reduced.

Wet Out.

The ʺfootprintʺ of TIMs surface area on each side of an interface that the TIMs covers.

Bond-Line-Thickness (BLT).

The TIMs thickness, or height, kept to a minimum for best performance. BLT is inversely proportional to thermal conductance.

Component Retention for Cure.

Assemblies requiring cure require a mechanical means of component retention, i.e., hems, fasteners, welds, and/or fixtures until the TIMS has attained sufficient strength for handling.

Coated Substrates.

Structural TIMs applications involving a substrate with a coating, shall demonstrate that the bond strength of the coating to the substrate is greater than the bond strength of the TIMs to the coating following all test conditions required by this specification. Coatings include e-coat or other paint coatings, laminations, isolation films, plating, Plasma Vapor Deposition Coatings (PVD), etc.
